Description

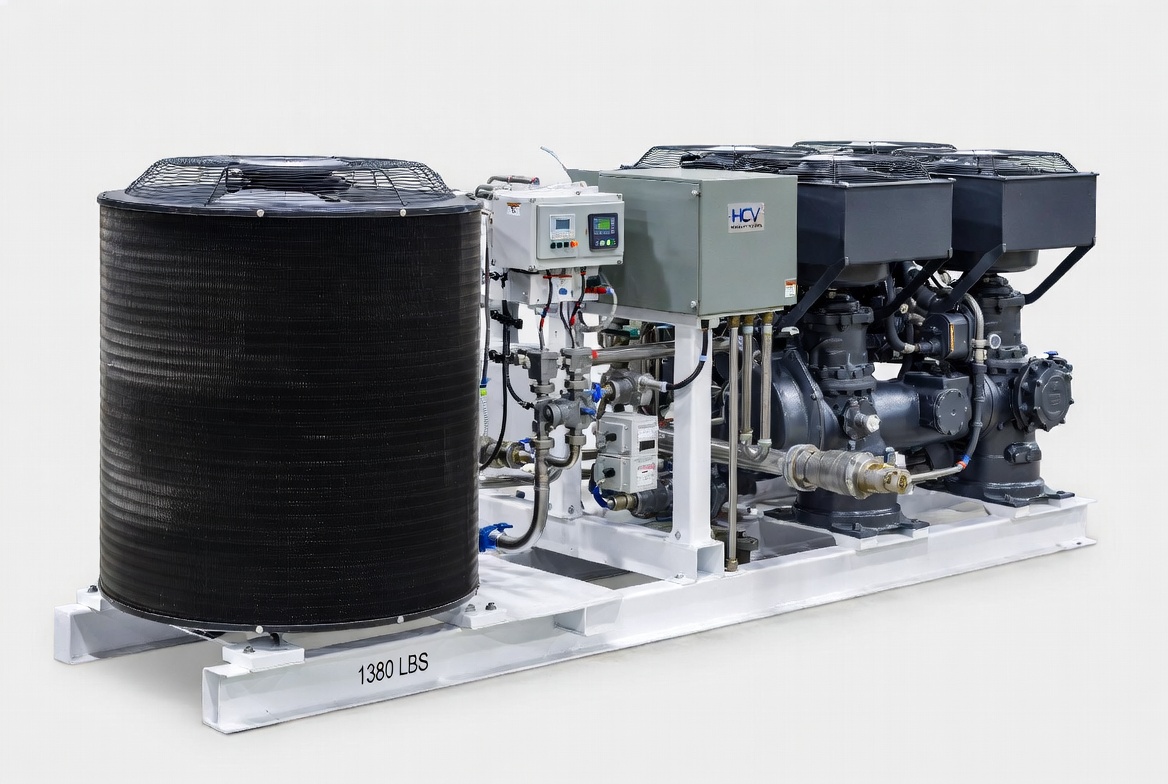

1. General Specifications
| Item | Specification |
| Manufacturer | HCV MANUFACTURING |
| Model | HCV-MF Series |
| Type | Packaged Multi-Function Outdoor HVAC |
| Mounting | Skid-mounted (forklift / crane ready) |
| Approximate Weight | 1,380 lbs (626 kg) |
| Frame | Heavy-duty white powder-coated steel |
| Application | Commercial, Industrial, Temporary Climate Control |
2. Performance & Capacity
| Function | Rating / Capability |
| Cooling Capacity | 20 – 40 Tons (configurable) |
| Heating Capacity | Heat-pump mode or optional electric/gas |
| Airflow | 8,000 – 16,000 CFM |
| Refrigerant | R-410A or R-32 (low-GWP options available) |
| Energy Efficiency | High-efficiency scroll compressors + VSD fans |
| Operating Range | Low-ambient capable (optional kit available) |
3. Key Components
| Component | Description |
| Compressors | Dual high-efficiency scroll compressors (redundancy & staging) |
| Condenser | Large vertical cylindrical coil with top-mounted axial fan |
| Fans | Multiple axial condenser fans + supply/return fans |
| Controls | Digital control panel with LCD, remote monitoring & BMS integration |
| Piping | Stainless steel and copper refrigerant lines with service valves |
| Filtration | Multi-stage (MERV-13+ standard, higher options available) |
| Optional Modules | UV-C purification, bipolar ionization, Energy Recovery Ventilator (ERV) |
4. Electrical Specifications
| Item | Specification |
| Power Supply | 460V / 3-Phase / 60Hz (other voltages available) |
| Control Voltage | 24V / 120V |
| Protection | Main disconnect, circuit breakers, phase monitoring |
| Wiring | Factory-wired and tested |
5. Dimensions (Approximate)
| Dimension | Value |
| Length | 120 – 140 inches (305 – 356 cm) |
| Width | 48 – 60 inches (122 – 152 cm) |
| Height | 70 – 85 inches (178 – 216 cm) |
6. Standard Features
- Dual compressors for capacity staging and redundancy
- Variable-speed fans for energy savings and precise control
- Digital diagnostics and fault history logging
- Weather-resistant outdoor design with powder-coated frame
- Lifting points and forklift pockets for easy handling
- Factory-tested, charged, and ready for installation
7. Optional Features
- Hot-gas reheat for enhanced dehumidification
- Electric or gas heating module
- Advanced air purification (UV-C / bipolar ionization)
- Remote IoT monitoring and cloud-based diagnostics package
- Custom paint, branding, or color schemes
- Low-ambient operation kit for extreme climates
8. Notes
Specifications are approximate and may vary based on configuration and options selected. HCV Manufacturing reserves the right to make design improvements without notice. For detailed performance data, capacity tables, or custom configurations, please contact HCV Manufacturing sales engineering.
